Inventory

The Inventory section allows you to add/edit/delete network switches and SoftGates (VPC gateways). Initial setup of a Netris managed network is a three step process:

1. Create Inventory Profiles.

2. Adding Switches.

3. Adding Softgates.

Note

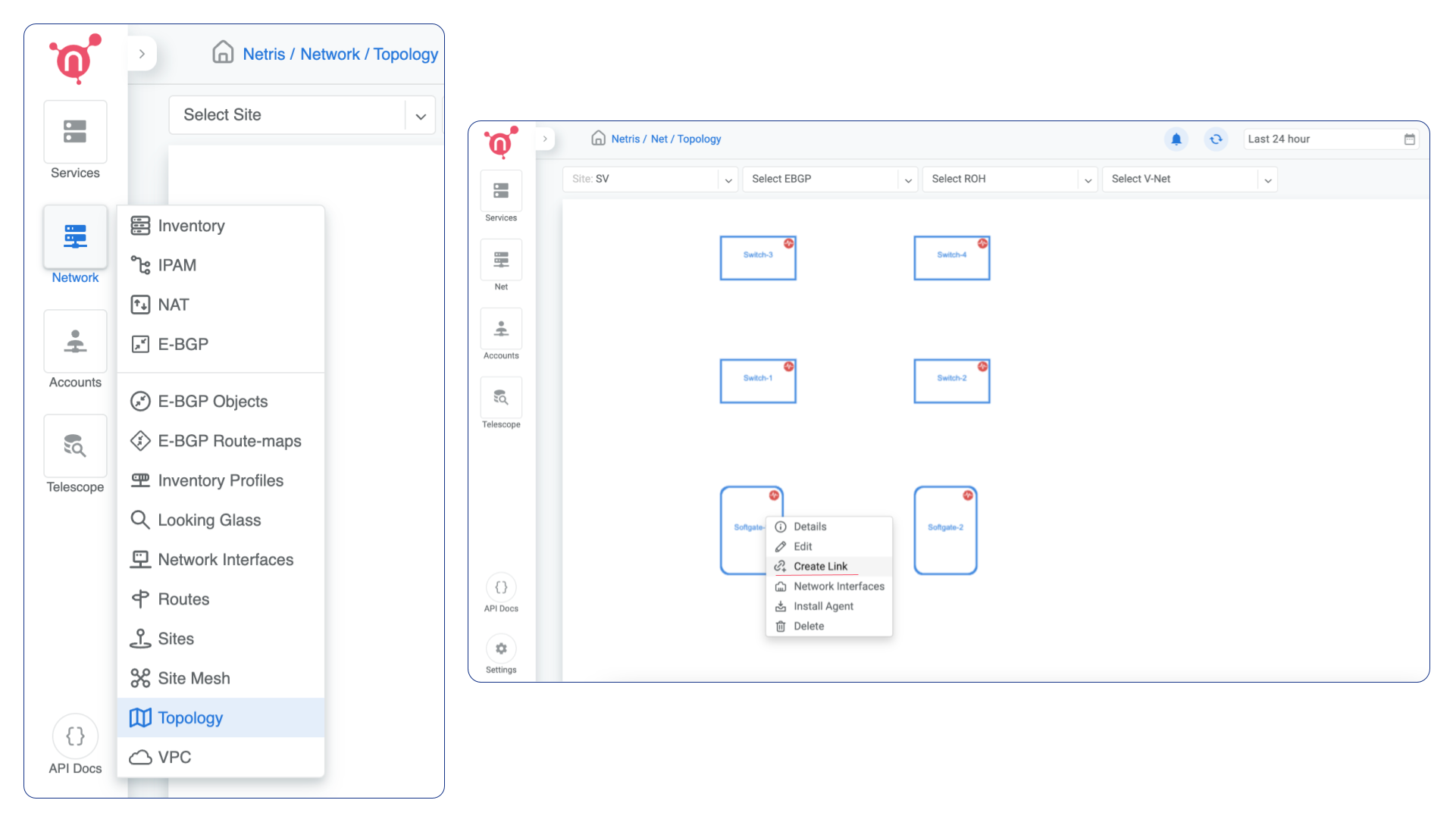

You can also add new devices in the Topology view.

Adding Switches

Every switch needs to be added to the Netris Controller inventory. You can add new devices with the following process:

1. Navigate to Network -> Inventory

2. Click the Add button

3. Fill in the fields as described below

4. Click the Add button

Add Inventory Fields - Switch

Name	Name of the device
Owner Tenant	Owner tenant of the device (usually Admin)
Description	Description of the device
Type	Select Switch
NOS	Operating system of the device; applicable to switches only
Site	Site where the devices reside
AS Number	Private AS number of the device; recommended to be assigned automatically
Profile	Inventory profile for the current device. Profiles are used for the security hardening of the devices
Main IP address	Main loopback IP address for the device. A subnet with purpose set to loopback needs to be defined in IPAM for the current site
Management IP address	Management IP address for the device. A subnet with purpose set to Management needs to be defined in IPAM for the current site
MAC address	MAC address of the device; applicable to switches only (reserved for future use)
Preliminary port count	Used for definition of topology. When the device registers with the controller the actual ports will synchronize with inventory
Add Link	Used for describing physical connections between switches and SoftGates

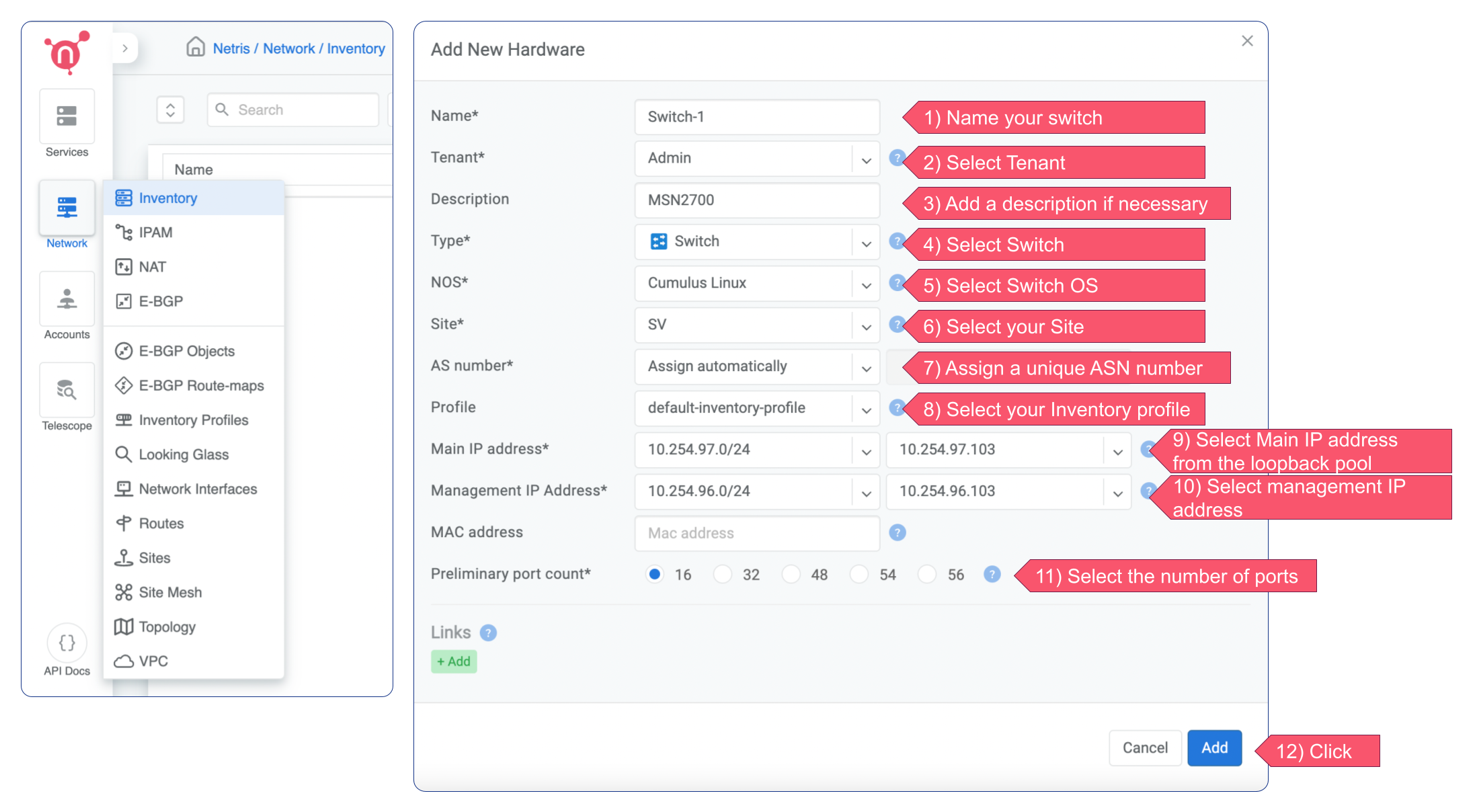

Example: Add a new Switch.

Note

Repeat this process to define all your switches.

Adding SoftGates

Every SoftGate node needs to be added to the Netris Controller inventory.

The installation process for SoftGate HS is described in the SoftGate HS installation section.

Adding Servers

Every server needs to be added to the Netris Controller inventory. You can add new devices with the following process:

1. Navigate to Network -> Inventory

2. Click the Add button

3. Fill in the fields as described below

4. Click the Add button

Add Inventory Fields - Server

Name	Name of the device
Tenant	Owner tenant of the device (usually Admin)
Description	Description of the device
Type	Select Server
Site	Site where the devices reside
AS Number	Private AS number of the device; recommended to be assigned automatically; applicable to servers with EVPN-VTEP role
Main IP address	Main loopback IP address for the device. A subnet with purpose set to loopback needs to be defined in IPAM for the current site; applicable to servers with EVPN-VTEP role
Management IP address	Management IP address for the device. A subnet with purpose set to Management needs to be defined in IPAM for the current siteapplicable to servers with EVPN-VTEP role
Role	Tells Netris whether the server is an agentless generic node (most use cases), or a CloudStack hypervisor, or an EVPN-VTEP (EVPN-on-Host) node.
Total Physical Ports	Total number of physical ports on the server including production interfaces, management interfaces (e.g., iDrac/IPMI), DPU ports including BMC and front panel ports. A typical DGX node has 8 east-west ports, 2 north-south ports, 2 or 3 management ports including BMCs of the server and the DPU. Netris recommends setting this value to at least 16 ports.
DPUs	Quantity of DPUs on the server operating in Zero-Trust mode. Most deployments have 1 DPU per server.
Custom	Custom attributes in JSON format. Typical use cases include supplying east-west host-side IP addressing and routing information, topology validation. This field is also used by the NVIDIA UFM and NMX-C plugins to store addtional information such as GUIDs and GPU IDs for the server node.
Labels	Custome metadata that can be used for built-in functions or user-created API automations.
Add Link	Used for describing physical connections between switches, servers, and SoftGates

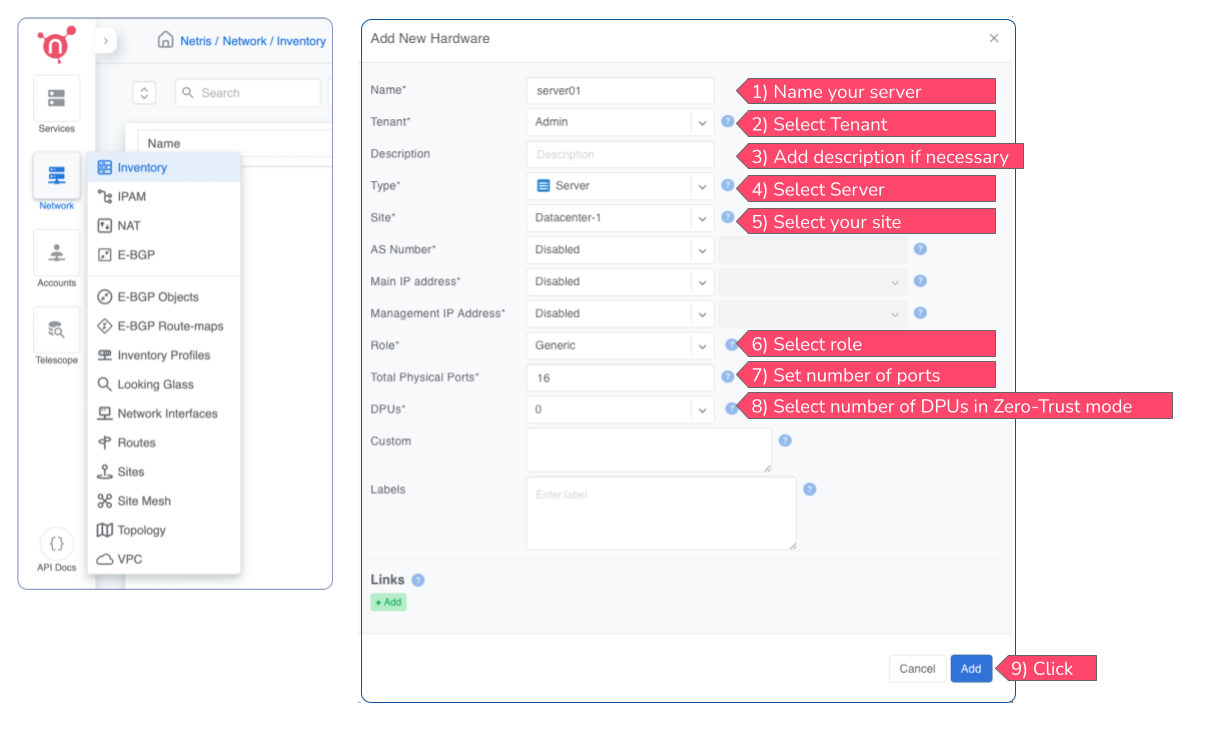

Example: Add a new Server.

Note

Repeat this process to define all your servers.

Adding DPUs

Starting with Netris 4.7, you can operate NVIDIA BlueField-3 DPUs. Unlike switches, servers, and SoftGates, DPUs are not standalone inventory objects, but rather a part of the server object. You can find more details about DPU support in Netris in the NVIDIA BlueField-3 DPUs section.

To add a DPU to a Netris server object, add or edit the server object in which the DPU is installed and fill in the DPU fields as described below:

1. Navigate to Network -> Inventory

2. Find the server object in which the DPU is installed and click Edit. If the server object does not exist, create it with the process described in Adding Servers section.

3. Set the DPUs field to the number of DPUs installed in the server and configured in Zero-Trust mode.

4. Fill in the fields as described below

5. Click the Save button

Add Inventory Fields - DPU

Port 1	Mapping of the first port of the DPU to a modeled server port.
Port 2	Mapping of the second port of the DPU to a modeled server port.
MGMT	Mapping of the BMC port of the DPU to a modeled server port.
VFs	Number of Virtual Functions (VFs) to be created on the DPU. VFs become endpoints in Netris and can be added to Vnets similarly to physical switch ports.
Management IP	Management IP address for the device. A subnet with purpose set to Management needs to be defined in IPAM for the current site
Loopback IP	Main loopback IP address for the device. A subnet with purpose set to loopback needs to be defined in IPAM for the current site
ASN	Private AS number of the device; recommended to be assigned automatically
Serial Number	Serial number of the device; This is the DPU’s unique identifier and is used for the device registration.
Inventory Profile	Inventory profile for the current device. Profiles are used for the security hardening of the devices

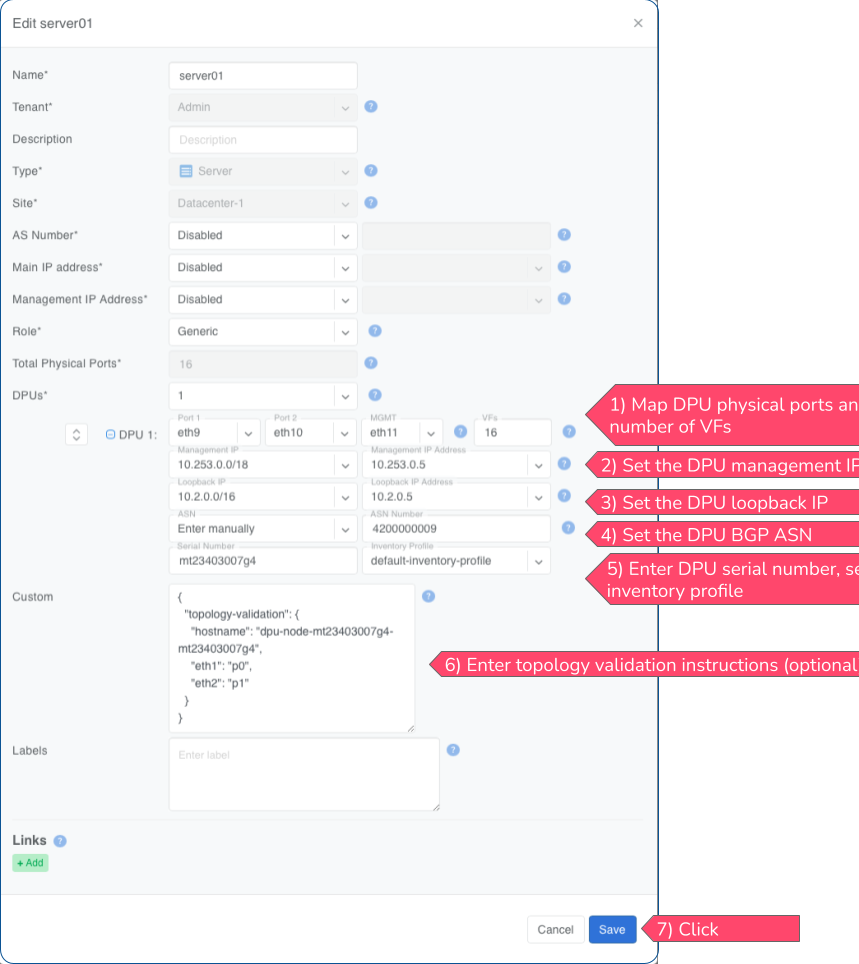

Example: Add a new DPU.

Note

Repeat this process to define all your DPUs.

Topology Manager

The topology manager is used for describing and monitoring the desired network topology. Netris Switch Agents software will automatically configure the underlying network devices according to this topology and will watch against potential failures. Wire your switches in accordance with the topology view.

Adding Links

To define the links in the network:

1. Right-click on the spine switch

2. Click Create Link

3. Select the From Port and the To Port

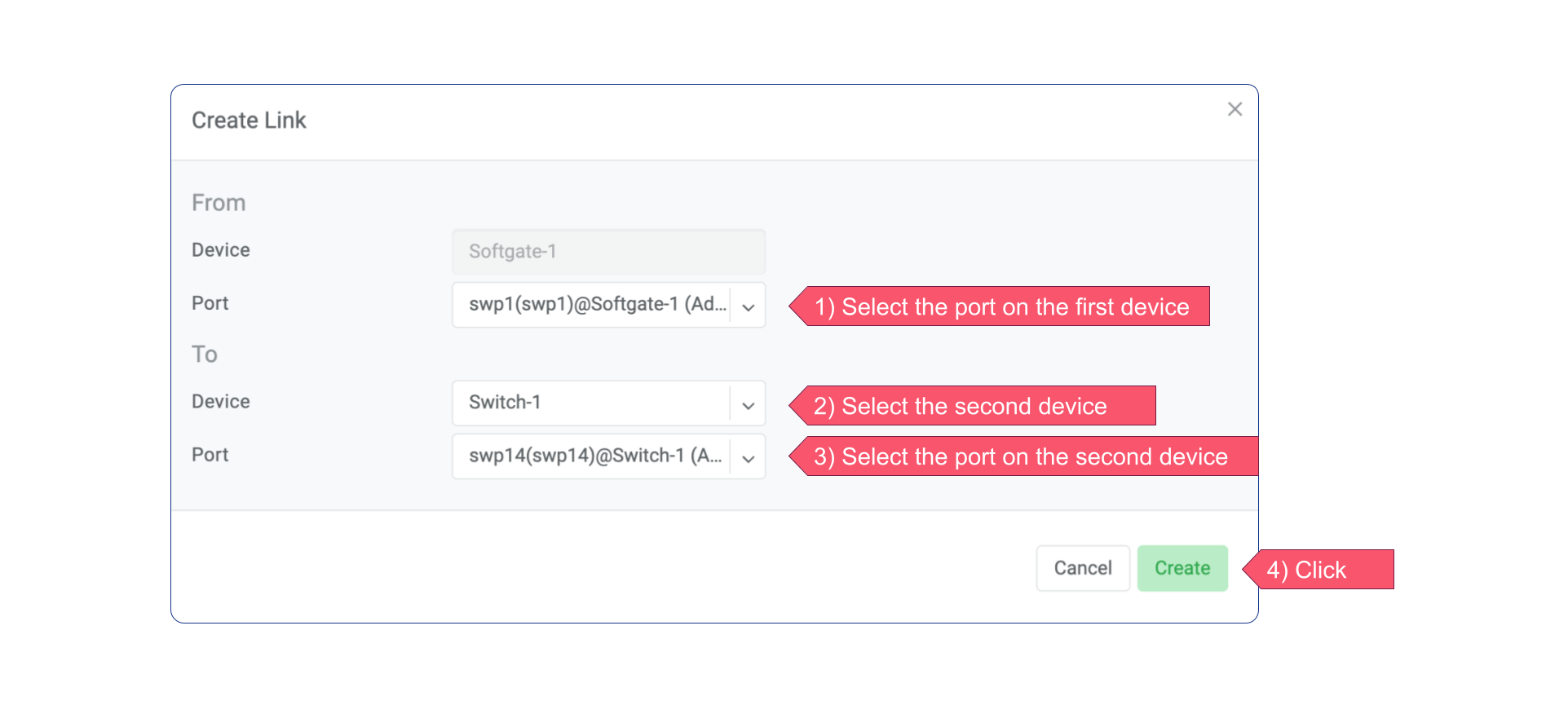

See the example below:

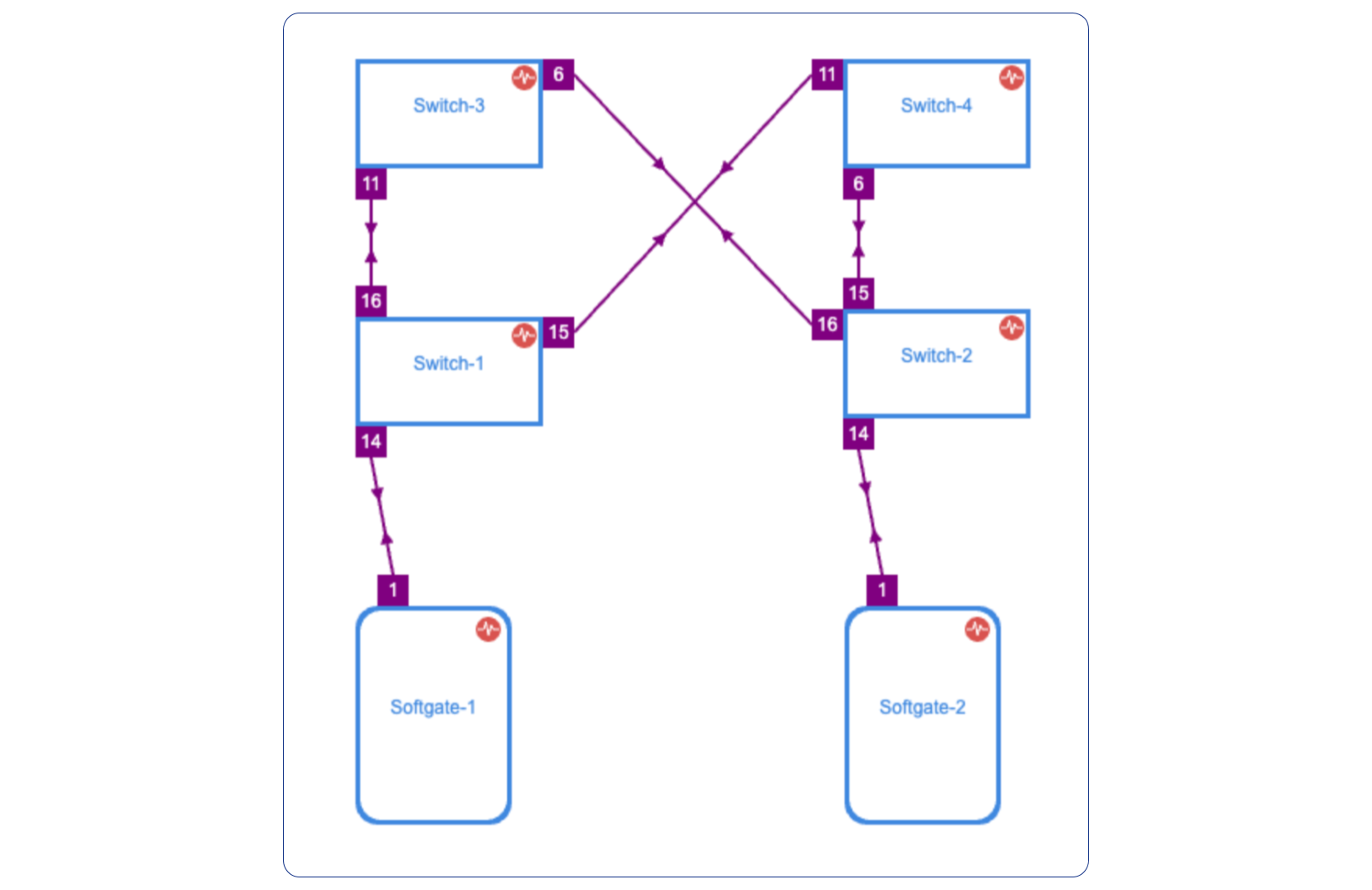

Once the links have been defined, the network is automatically configured as long as physical connectivity is in place and Netris Agents can communicate with Netris Controller.

Tip

You can drag/move the units to your desired positions and click “Save positions”.
